安全 I/O 模块
Bihl+Wiedemann 提供用于访问任何安全输入信号的正确模块。控制柜模块 (IP20) 和现场模块 (IP67) 均可提供。从单个安全输入或输出到安全多 I/O 模块,我们提供适合您要求的 A
Bihl+Wiedemann 提供用于访问任何安全输入信号的正确模块。控制柜模块 (IP20) 和现场模块 (IP67) 均可提供。从单个安全输入或输出到安全多 I/O 模块,我们提供适合您要求的 ASi 模块。我们的许多模块还包括标准信号的可用输出。
Figure | Type | Inputs Safety, SIL 3, Cat. 4 | Safety signal inputs | Outputs Safety, SIL 3, cat. 4 | Input voltage (sensor supply) | Output voltage (actuator supply) | ASi address | Special function | Article No. |
---|---|---|---|---|---|---|---|---|---|
BWU1939 | IP20, 22,5 mm x 50 mm, 3 x 4 contacts, Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of AUX | 1 Single address | - | BWU1939 |
BWU2724 | IP20, 22,5 mm x 50 mm, 3 x 4 contacts, Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | - | BWU2724 |
BWU2661 | IP20, 22,5 mm x 50 mm, 3 x 4 contacts, Safety | 1 x 2 channels; SIL 2, Cat. 3 | safety mats 1.2 kΩ or 8.2 kΩ monitoring resistor | - | out of AUX | out of AUX | 1 Single address | - | BWU2661 |
BWU2577 | IP20, 22,5 mm x 50 mm, 3 x 4 contacts, Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | - | BWU2577 |
BWU3882 | IP20, 22,5 mm x 50 mm, 3 x 4 contacts, Safety | 1 x 2 channels | complementary switch | - | out of ASi | out of ASi | 1 Single address | - | BWU3882 |
BWU3013 | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety | 1 x 2 channels | floating contacts | - | out of AUX | out of AUX | 1 Single address | - | BWU3013 |
BWU2707 | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety | 2 x 2 channels | floating contacts | - | out of AUX | out of AUX | 2 Single addresses | - | BWU2707 |
BWU3671 | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety | 2 x 2 channels | floating contacts, complementary OSSDs | - | out of AUX | - | 2 Single addresses | - | BWU3671 |
BWU3696 | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety | 2 x 2 channels | floating contacts, OSSDs | - | out of AUX | - | 2 Single addresses | - | BWU3696 |
BWU2692 | IP20, 22,5 mm x 114 mm, 6 x 4 contacts, Safety | 1 x 2 channels | 4 ... 20 mA / 0 ... 10 V / Pt100 | - | out of AUX | - | depending on configuration | - | BWU2692 |
BWU3271 | IP20, 22,5 mm x 114 mm, 6 x 4 contacts, Safety | 1 x 2 channels | thermocouples | - | out of ASi | - | depending on configuration | - | BWU3271 |
BWU4209 | IP67, 8 x M12, ASi-5 Safety | 2 x 2 channels | floating contacts | - | out of AUX | out of AUX | 1 ASi-5 address | - | BWU4209 |
BWU4210 | IP67, 8 x M12, ASi-5 Safety | 2 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 ASi-5 address | - | BWU4210 |
BW3489 | IP67, 8 x M12, Safety | 6-8 x 2 channels; depending on configuration | floating contacts, OSSDs, complementary switch | up to 2 release circuits, up to 2 x electronic safe outputs; depending on configuration | out of ASi | out of ASi | depending on configuration | - | BW3489 |
BW3499 | IP67, 8 x M12, Safety | 6-8 x 2 channels; depending on configuration | floating contacts, OSSDs, complementary switch | up to 2 release circuits, up to 2 x electronic safe outputs; depending on configuration | out of ASi | out of ASi | depending on configuration | - | BW3499 |
BW3490 | IP67, 8 x M12, Safety | 6-8 x 2 channels; depending on configuration | floating contacts, OSSDs, complementary switch | up to 2 release circuits, up to 2 x electronic safe outputs; depending on configuration | out of AUX | out of AUX | depending on configuration | muting | BW3490 |
BWU3064 | IP67, 8 x M12, Safety | 2 x 2 channels | floating contacts, OSSDs | 4 release circuits, 4 x electronic safe outputs | out of AUX | out of AUX | depending on configuration | - | BWU3064 |
BWU4379 | IP67, 4 x M12 (51 mm x 60 mm), Safety | 1 x 2 channels | floating contacts | 1 release circuit, 2 x relay | out of AUX | - | 2 Single addresses + 1 AB address | - | BWU4379 |
BWU2836 | IP20, 22,5 mm x 114 mm, 6 x 4 contacts, Safety | - | - | 1-8 release circuits, 8 x electronic safe outputs | out of AUX | out of AUX | depending on configuration | - | BWU2836 |
BWU2236 | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety | 1 x 2 channels | floating contacts | 1 release circuit, 2 x relay | out of AUX | - | 2 Single addresses + 1 AB address | - | BWU2236 |
BWU3398 | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety | - | - | 1 release circuit, 2 x electronic safe outputs, max. 3 A, augmented reliability | out of AUX | out of AUX | 1 Single address + 2 AB addresses | - | BWU3398 |
BWU2173 | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety | - | - | 1 release circuit, 2 x electronic safe outputs | out of AUX | out of AUX | 1 Single address + 2 AB addresses | - | BWU2173 |
BWU3869 | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety | - | - | 1 release circuit, 2 x electronic safe outputs, max. 3 A, augmented reliability | out of AUX | out of AUX | 1 Single address + 1 AB address | - | BWU3869 |
BWU2045 | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety | - | - | 1 release circuit, 2 x relay | out of ASi | - | 1 Single address + 1 AB address | - | BWU2045 |
BW3016 | IP20, 22,5 mm x 114 mm, 6 x 4 contacts, Safety | - | - | 1 contact expander, 1 x electronic safe output 20 A | - | out of AUX | - | - | BW3016 |
BW3281 | IP20, 22,5 mm x 114 mm, 6 x 4 contacts, Safety | - | - | 1 contact expander, 1 x electronic safe output 10 A | - | out of AUX | - | - | BW3281 |
BWU3427 | IP20, 22,5 mm x 114 mm, 6 x 4 contacts, Safety | 4 x 2 channels | floating contacts, OSSDs, complementary switch | 2 release circuits, 2 x electronic safe outputs, augmented reliability | out of AUX | out of AUX | depending on configuration, optimised for ASIMON360 | - | BWU3427 |
BWU3428 | IP20, 22,5 mm x 114 mm, 6 x 4 contacts, Safety | 8 x 2 channels | floating contacts, OSSDs, complementary switch | 1 release circuit, 1 x electronic safe outputs, augmented reliability | out of AUX | out of AUX | depending on configuration, optimised for ASIMON360 | - | BWU3428 |
BWU3883 | IP20, 22,5 mm x 114 mm, 6 x 4 contacts, Safety | 6 x 2 channels | floating contacts, OSSDs, complementary switch | 2 release circuits, 2 x electronic safe outputs, augmented reliability | out of AUX | out of AUX | depending on configuration, optimised for ASIMON360 | - | BWU3883 |

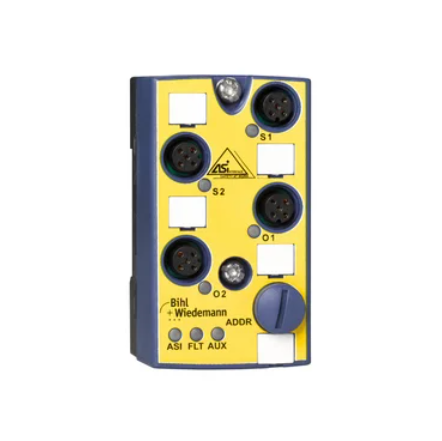

BWU2631 | IP67, 4 x M12, Safety | 2 x 2 channels | floating contacts | - | out of ASi | - | 2 Single addresses | - | BWU2631 |
BWU2284 | IP67, 4 x M12, Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of AUX | 1 Single address | - | BWU2284 |
BWU2270 | IP67, 4 x M12, Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | - | BWU2270 |
BWU2689 | IP67, 4 x M12, Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | Reset output for optoelectronic protective devices | BWU2689 |
BWU2814 | IP67, 4 x M12, Safety | 1 x 2 channels | complementary switch | - | out of ASi | out of AUX | 1 Single address | - | BWU2814 |
BWU2370 | IP67, 4 x M12, Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | - | BWU2370 |
BWU2960 | IP67, 4 x M12, Safety | 1 x 2 channels | OSSDs | - | out of ASi | out of ASi | 1 Single address | - | BWU2960 |
BWU2369 | IP67, 4 x M12, Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of AUX | 1 Single address | - | BWU2369 |
BWU3604 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | to connect 2 x NC contacts to ASi | BWU3604 |
BWU3425 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of AUX | 1 Single address | to connect 2 x NC contacts to ASi | BWU3425 |
BWU3750 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of AUX | 1 Single address | - | BWU3750 |
BWU4956 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | to connect Leuze MLC530SPG (operation mode 4) to ASi | BWU4956 |
BWU3718 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | to connect Leuze MLC530SPG (operation mode 5) to ASi | BWU3718 |
BWU3725 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | To connect Sick deTec4 to ASi | BWU3725 |
BWU3249 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | to connect 2 x NC contacts to ASi | BWU3249 |
BWU3600 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | - | 1 Single address | to connect 2 x NC contacts to ASi | BWU3600 |
BWU3719 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | to connect Leuze MLD530-RT3M (operation mode 5) to ASi | BWU3719 |
BWU4166 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | to connect Leuze MLD530-RT3M to ASi | BWU4166 |
BWU3599 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | to connect 2 x NC contacts to ASi | BWU3599 |
BWU3248 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | to connect 2 x NC contacts to ASi | BWU3248 |
BWU3373 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | - | 1 Single address | to connect 2 x NC contacts to ASi | BWU3373 |
BWU3553 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | - | 1 Single address | to connect Sick RE13-SA84 / RE13-SAC / RE23-SAC / RE23-SA84 to ASi | BWU3553 |
BWU3413 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | - | 1 Single address | to connect E-STOP buttons to ASi via M12 | BWU3413 |
BWU3626 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | - | 1 Single address | to connect E-STOP buttons to ASi via M12 | BWU3626 |
BWU3796 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | - | BWU3796 |
BWU4702 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | - | BWU4702 |
BWU4701 | Active distributor ASi Safety | 1 x 2 channels | floating contacts | - | out of ASi | - | 1 Single address | to connect E-STOP buttons to ASi via M12 | BWU4701 |
BW3299 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | - | BW3299 |
BWU3627 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | - | BWU3627 |
BWU3376 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | to connect Euchner MGB / Pizzato ST GD110MP-G1T to ASi | BWU3376 |
BWU4990 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | - | BWU4990 |
BWU3721 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | to connect Pilz PSENslock, PSENcode to ASi | BWU3721 |
BWU3488 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | to connect Pilz PSENslock, PSENcode to ASi | BWU3488 |
BWU3565 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | to connect Schmersal AZM400 to ASi | BWU3565 |
BWU3635 | Active distributor ASi Safety | 1 x 2 channels | OSSDs | - | out of AUX | out of AUX | 1 Single address | to connect Schmersal AZM200 / AZM201 / AZM300 / MZM100 / RSS 16 to ASi | BWU3635 |
BWR3067 | circuit board 43 mm x 30 mm, Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | for mounting in E-STOP housing | BWR3067 |
BWR2426 | circuit board 43 mm x 30 mm, Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | for mounting in E-STOP housing | BWR2426 |
BWR2521 | circuit board 43 mm x 30 mm, Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of ASi | 1 Single address | for mounting in E-STOP housing | BWR2521 |
BWR1896 | circuit board 73 mm x 37,5 mm, Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of AUX | 1 Single address | - | BWR1896 |
BWR1751 | circuit board 73 mm x 37,5 mm, Safety | 1 x 2 channels | floating contacts | - | out of ASi | out of AUX | 1 Single address | - | BWR1751 |
BW2914 | circuit board 85 mm x 80 mm, Safety | - | - | 1 release circuit, 1 x electronic safe output | out of AUX | out of AUX | 1 Single address + 2 AB addresses | - | BW2914 |
