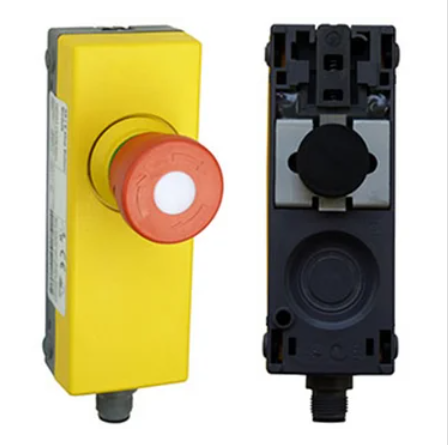

Bihl+Wiedemann 提供一系列基于创新外壳的控制和信号设备。E-STOP 开关模块具有安全 ASi 输入节点,并提供 2 色照明 - 取决于执行器位置或控制器指定。
E-STOP 设计用于挤压导轨安装 (40mm),但也可以使用安装夹单独安装。使用 M12 连接可以方便地进行 ASi 连接。Bihl+Wiedemann 还在同一外壳中提供各种其他控制和信号设备。
|
BW2773 | E-STOP button module | red/green | 2 holes for screw mounting | ASi via M12 | 1 Single address | BW2773 |
BW2529 | E-STOP button module | red/green | retaining clip | ASi via M12 | 1 Single address | BW2529 |
BW2709 | E-STOP button module | red/green | magnet | ASi via M12 | 1 Single address | BW2709 |
BW2585 | E-STOP button module | no | retaining clip | ASi via M12 | 1 Single address | BW2585 |
BW3159 | light button module | red/green | 2 holes for screw mounting | ASi via M12 | 1 AB address | BW3159 |
BW2528 | light button module | red/green | retaining clip | ASi via M12 | 1 AB address | BW2528 |
BW2708 | light button module | red/green | magnet | ASi via M12 | 1 AB address | BW2708 |
BW3474 | light button module | white/blue | 2 holes for screw mounting | ASi via M12 | 1 AB address | BW3474 |
BW3475 | light button module | yellow/blue | 2 holes for screw mounting | ASi via M12 | 1 AB address | BW3475 |
BW3478 | light button module | white/blue | retaining clip | ASi via M12 | 1 AB address | BW3478 |
BW2527 | E-STOP button | no | mounting diameter 22,3 mm, plug-in-shoe connection | - | - | BW2527 |
